The ultrasound window of my sensor looks damaged: is it broken?

The ultrasound window can look different for every sensor. The optical properties of the window are not a controlled parameter which means the color and homogeneity of the window can vary.

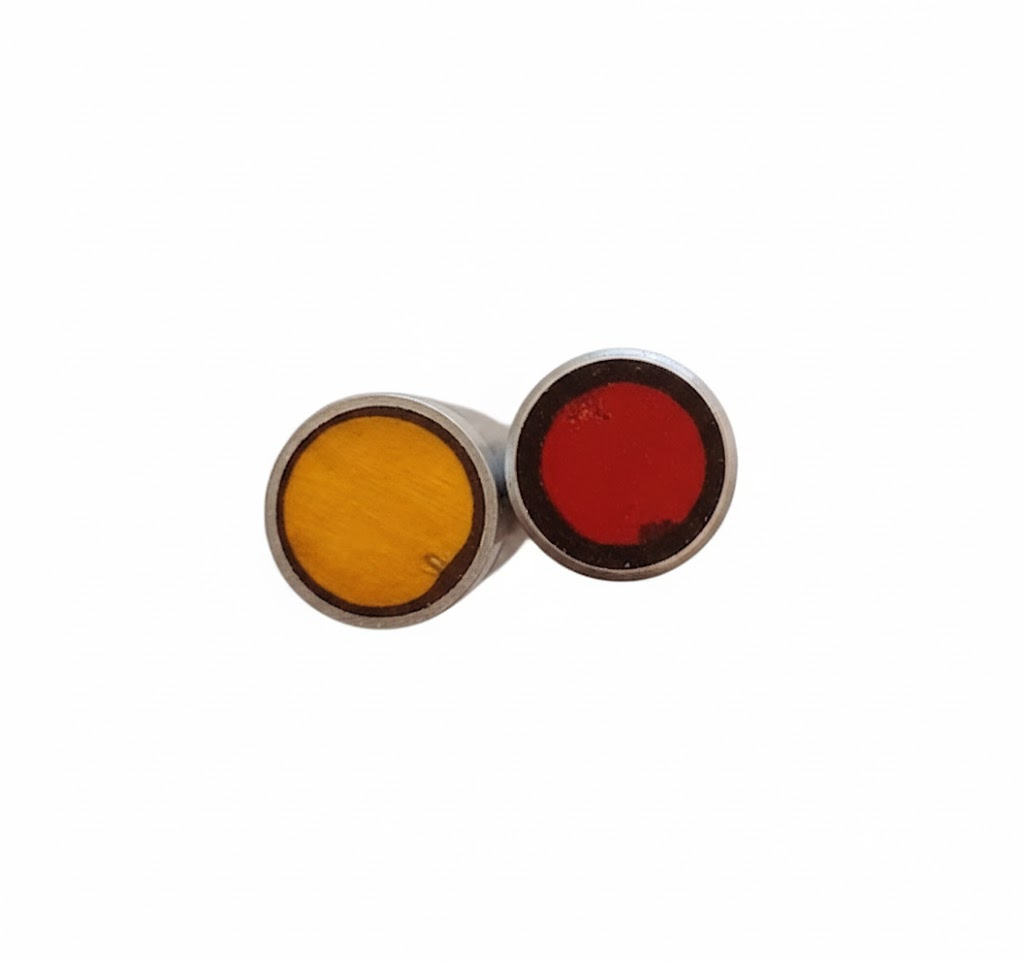

Example of an ultrasound window


Different colors of identical ultrasound transducer. The visual imperfections in the ultrasound window are in fact the electrical connections of the piezo element. These inhomogeneous features are normal.

A truly damaged ultrasound window can be seen by scratches, indentations or water ingress. In such cases, replacement is advised. The majority of ultrasound transducer are damaged via exterior mechanical influences: rocks, sharp objects, abrasion or (temperature) shocks.
